Specifications
Applications Specifications Options
Hyperion Performance Specifications
| Plasma Gas | Maximum Reduced Brightness (Am-2sr-1V-1) | Energy Spread (eV) | High voltage Isolation (kV) |
Extractor Voltage
With respect to beam energy (kV) |
Beam Current Stability (%drift/hour) |
Beam Purity (%) |
Lifetime (Hours) |
| Xenon | 1x104 | 5-6 | 30kV | 0-10kV | <0.25% | >99% Xe+ | >2000 |
| Oxygen | 4x103 | 5-6 | 30kV | 0-10kV | <0.25% | >99%* | >2000 |
* Ratio of O2+:O+ depends on operating conditions and can vary from 9:1
to 1:1
NOTE: Other plasma species are possible, but haven’t been characterized
yet at Oregon Physics.

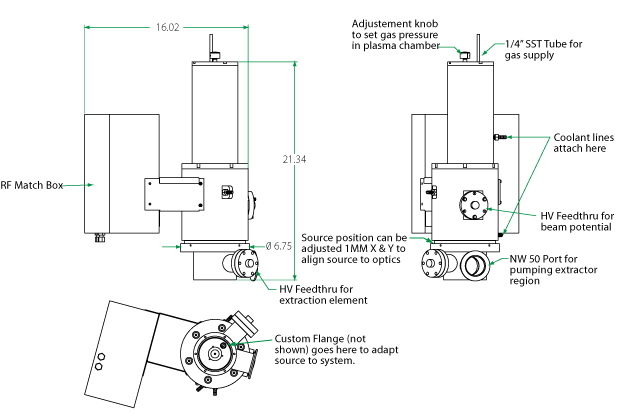

Dimensions & Mounting
Hyperion ion source.

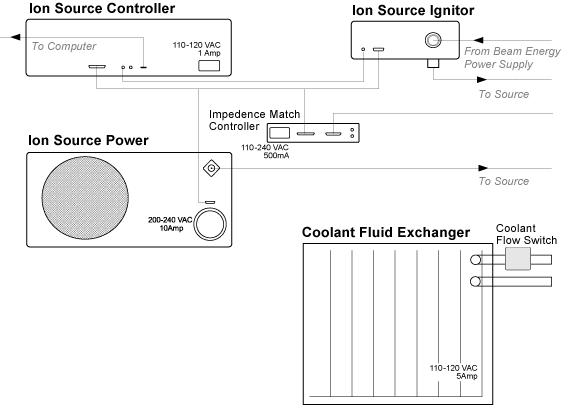

Hyperion Electronics
Hyperion control electronics.
| Height | Width | Depth | Mount | |
| Ion Source Controller | 5.25" | 19" | 20" | Rack |
| Ion Source Power | 8.25" | 19" | 20" | Rack |
| Coolant Fluid Heat Exchanger | Various options | |||
| Impedance Match Controller | 1.75" | 8.5" | 10" | Desk Top |
| Ion Source Ignitor | 3.5" | 6" | 10" | Instrument |
Dimensions for the Hyperion control electronics.
