FIB Aperture Strips

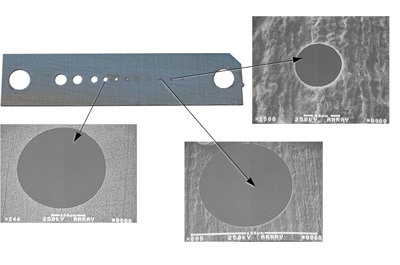

Oregon Physics can quickly supply custom apertures strips for common FIB columns such as the FEI Magnum and Prelens columns. These aperture holes are manufactured in our high current FIB micromachining lab for fast turnaround on strips with custom hole patterns. Several standard hole patterns (as shown below) are immediately available.
| Hole Number | ||||||||||||
| Column | #1 | #2 | #3 | #4 | #5 | #6 | #7 | #8 | #9 | #10 | #11 | #12 |
| FEI Magnum | 20nA | 13nA | 7nA | 5nA | 3nA | 1nA | 300pA | 100pA | 50pA | 30pA | 10pA | 1pA |
| FEI Magnum | 20nA | 7nA | 5nA | 3nA | 1nA | 500pA | 300pA | 100pA | 50pA | 30pA | 10pA | 1pA |
| FEI Prelens | 11nA | 7nA | 3nA | 1nA | 350pA | 150pA | 70pA | 11pA | 4pA | 1pA | - | - |
| FEI Prelens | 11nA | 7nA | 7nA | 3nA | 3nA | 1nA | 150pA | 70pA | 11pA | 1pA | - | - |
Standard hole patterns in stock for the FEI Magnum and Prelens columns.
Custom hole patterns manufactured to order in our high-current FIB micromachining lab. Fast turnaround.
